Description
Product Highlights:
Material:
Vinyl
Label/Tape Size:
1.9 in W x 50 ft L
Color:
White
Printer Compatibility:
BMP61, BMP71 (with media adapter), M611
Recommended Ribbon:
M61-R6010, M71-R6000
Material Number:
B-439 (View Technical Data Sheet)
Label Properties:
Aggressive Adhesive, Harsh Environment, Permanent Adhesive
Overview
Permanent Vinyl (B-439) is a thermal transfer printable material ideal for applications needing various colors like finished product ID, rating plates and general purpose ID.
- Available in many different colors as a custom option
- Designed for use in ambient conditions with limited solvent exposure
- Indoor/outdoor vinyl film has an acrylic pressure sensitive adhesive
- Service temperature of -94 to 104° F (-70 to 40° C)
- A ribbon is required to print this material. Use Part Number M61-R6010 for the BMP®61 Label Printer / BradyPrinter M611 Mobile Label Printer or M71-R6000 for the BMP®71 Label Printer. This label is no longer compatible with TLS Series Printers
Specifications
| Key Characteristics | Catalog Page # | 147 |
| Product Number | 18620 | |
| UPC | 662820186205 | |
| Applications | Asset Tracking, Barcode Labeling, Component & Equipment ID, General & Industrial ID, Panel Labeling, Rating Plates | |
| UOM | Roll of 50 Feet | |
| Trade Name | WorkHorse® | |
| Brand Name | Brady® | |
| Country of Origin | Mexico | |
| HTS Code (Harmonized Tariff Schedule) | 8443.99.2550 | |
| ECCN (Export Commodity Control Number) | EAR99 |

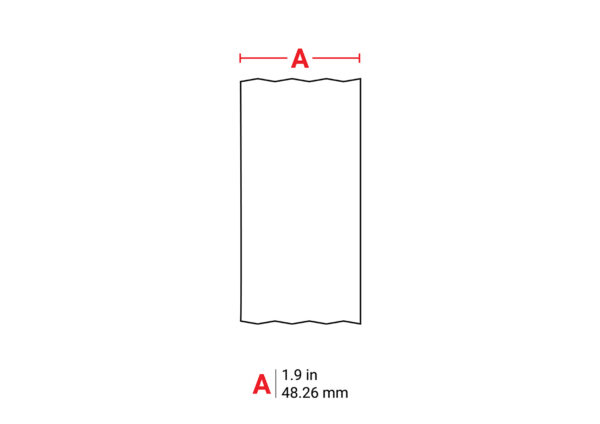

| Dimensions | Label/Tape Size | 1.9 in W x 50 ft L |
| Roll Length | 50 ft | |
| Roll Width | 1.9 in | |
| Thickness | 0.0042 in | |
| Web Width | 2.15 in |
| Material Characteristics | Material Number | B-439 (View Technical Data Sheet) |
| Material | Vinyl | |
| Label Properties | Aggressive Adhesive, Harsh Environment, Permanent Adhesive | |
| Adhesive Type | Permanent Acrylic | |
| Finish | Gloss | |
| Color | White | |
| Resistance Properties | Abrasion-Resistant, Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, UV-Resistant, Weather-Resistant | |
| Indoor or Outdoor Use | Outdoor Use | |
| Service Temperature Range °F | -94 °F – 176 °F | |
| Minimum Service Temperature °F | -94 °F | |
| Minimum Service Temperature °F | -94 °F | |
| Maximum Service Temperature °F | 176 °F | |
| Compatible Surface Types | High Surface Energy |
| Product Features | Application | Barcode Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, General Identification, Inventory and Inspection Labeling, Laboratory Labeling |
| Average Outdoor Durability | 5 Years | |
| Label/Media Format | Roll | |
| Quantity per Row | 1 |
| Printing Specifications | Print Technology | Thermal Transfer |
| Compatibility | Printer Compatibility | BMP61, BMP71 (with media adapter), M611 |
| Recommended Ribbon | M61-R6010, M71-R6000 | |
| Suggested Ribbon Series | R4400, R6000 Halogen Free |
| Preprinted Information | Pre-Printed Areas on Label | Colored Write-On Area |
| Compliance | UNSPSC | 55121612 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
